The non-electric filter system – FILTEOO ® ONE purifies wastewater for private households with up to 6 persons.
HIGH RELIABILITY – 365 DAYS A YEAR
FILTEOO ® ONE operates 365 days a year with reliable cleaning performance. Designed entirely without mechanical and electrical components, FILTEOO® ONE thus incurs minimal maintenance and servicing costs over its entire service life.
POSSIBLE APPLICATIONS
- Homes
- Allotments and Holiday homes
- Camping sites
- Clubhouses and sports facilities
- Decentralized office locations and permanent construction sites
MANY GOOD REASONS FOR FILTEOO ® ONE
- Quite simple – without electricity ✔
FILTEOO ® ONE operates without mechanical and electronic components. No wear of moving parts occurs. - Everything clean & certified ✔
FILTEOO ® ONE guarantees environmentally compatible cleaning of wastewater for 1 to 6 persons – especially also in the underload range. This was tested and certified by several German institutions (PIA, Aachen/ DIBt, Berlin/BDZ, Leipzig) in terms of both wastewater technology and construction. - Low cost ✔
FILTEOO ® ONE does not consume energy – Gravity flow and aeration by chimney effect do not require any electricity.
WHY FILTEOO ® ONE IS THE BEST CHOICE
- Simple to operate ✔
The system is easy to operate, as it does not require electronic control. - Easy essembly ✔
No power supply required. - Sustainable & recyclable ✔
The construction components are 100 % recyclable. The used filter material (rock wool) is disposed of properly.

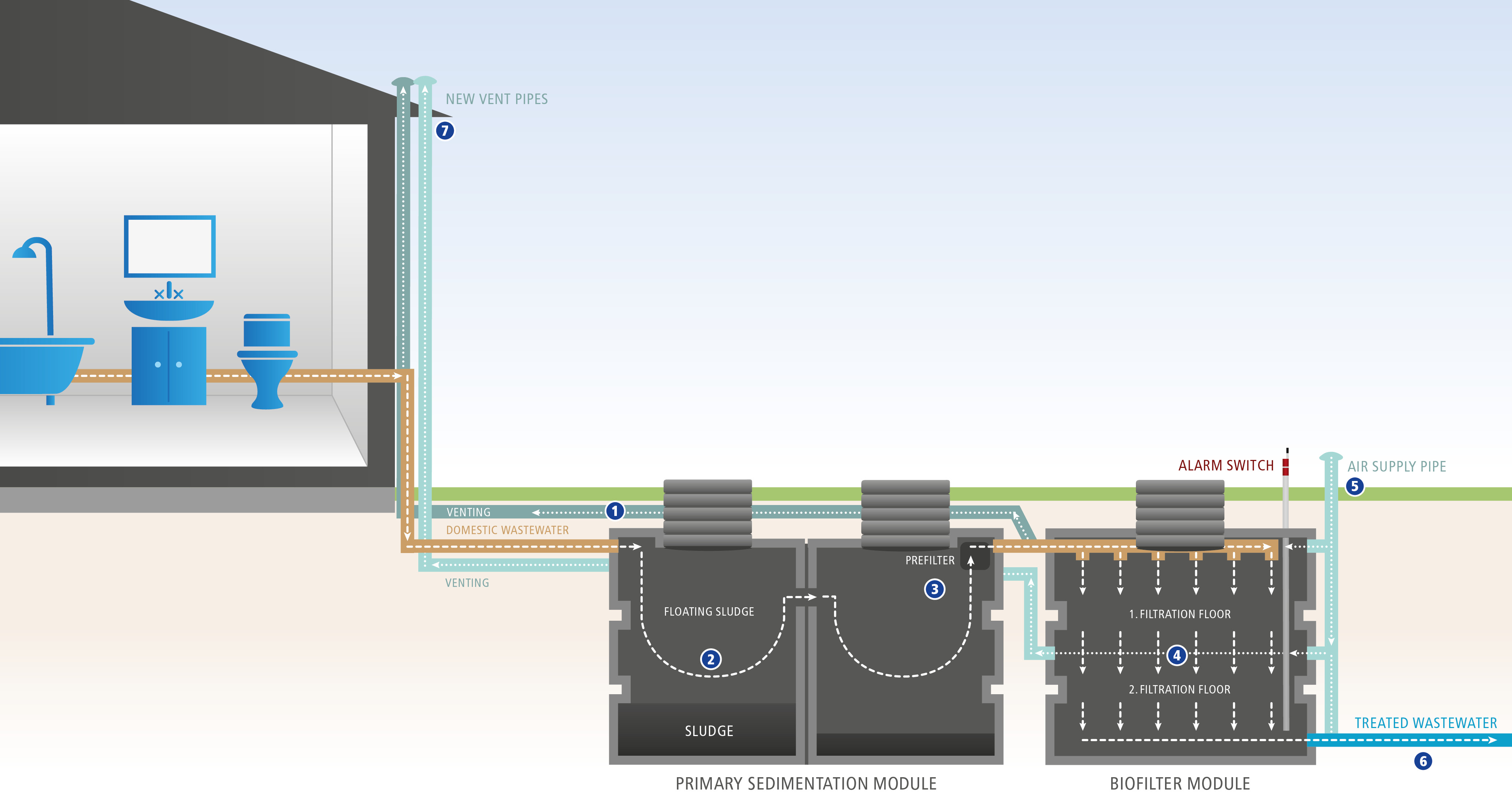

FILTEOO ® ONE - THIS IS HOW THE SYSTEM WORKS
- The domestic wastewater flows into the primary treatment module.
- Fats and other floating substances remain on the surface of the water in the primary sedimentation and form a floating sludge layer. Heavy substances settle and collect on the bottom of the primary settlement tank.
- An integrated, easily removable pre-filter between the primary sedimentation module and the biofilter retains suspended solids, fats and other filterable substances.
- The biofilter consists of two filtration layers with special rock wool and a ventilation layer in between. The aeration takes place completely without electricity through the so-called chimney effect. The pre-cleaned wastewater from the pretreatment module is directed to the surface of the first filtration floor by means of adjustable distribution pipes. The water then trickles from the upper filtration floor over the aeration layer, where it is enriched with oxygen, to the second filtration floor.
- Air is drawn into the aeration floor of the biofilter via the supply air line near the floor.
- After the treatment process, the wastewater is discharged into surface water or infiltrates into the soil.
- For the chimney effect, the exhaust pipes are fixed with a height difference of at least 3 m, e.g. on the house facade or similar. In addition, another vent is necessary between the pre-treatment and the biofilter.
FILTEOO ® ONE - TECHNICAL DATA
Primary sedimentation module
The pre-sedimentation module is identical for both FILTEOO ® ONE plant sizes (1–4 PE and 1–6 PE). It is supplied with an integrated pre-filter (Ø 110 mm) made of polypropylene and stainless steel.
- Case: from stable and resistant PE material
- Lenght: 2,70 m
- Width: 1,15 m
- Height: 1,95 m to 1,65 m (depending on installation depth)
- Total volume: 3,60 m³
- Weight (empty): 270 kg
Biofilter module
The difference between both module sizes is in the length of the tanks.
- Case: from stable and resistant PE material
- Length 4 PE: 1,35 m
- Length 6 PE: 1,85 m
- Width: 1,15 m
- Height: 1,95 m to 1,65 m (depending on installation depth)
- Weight (empty) 4 PE: 260 kg
- Weight (empty) 6 PE : 366 kg
Individual – the possible installation variants
The two tanks of the pre-treatment module and the tank of the biofilter can be arranged in different variants as desired. The tanks are installed in the ground, with only their lids and the ventilation pipes visible. The FILTEOO ® ONE complete system can thus be integrated into any garden and meadow landscape.
RETROFITTING THE FILTEOO ® ONE BIOFILTER
Existing plants can be retrofitted with a suitable FILTEOO ® ONE biofilter. This is installed behind the existing sedimentation tank with the aid of the associated pipe kit. The requirement for this is the proven tightness of the existing septic tank. Only a small amount of space is required for the retrofit, whereby the biofilter can also be installed across corners according to your wishes.
